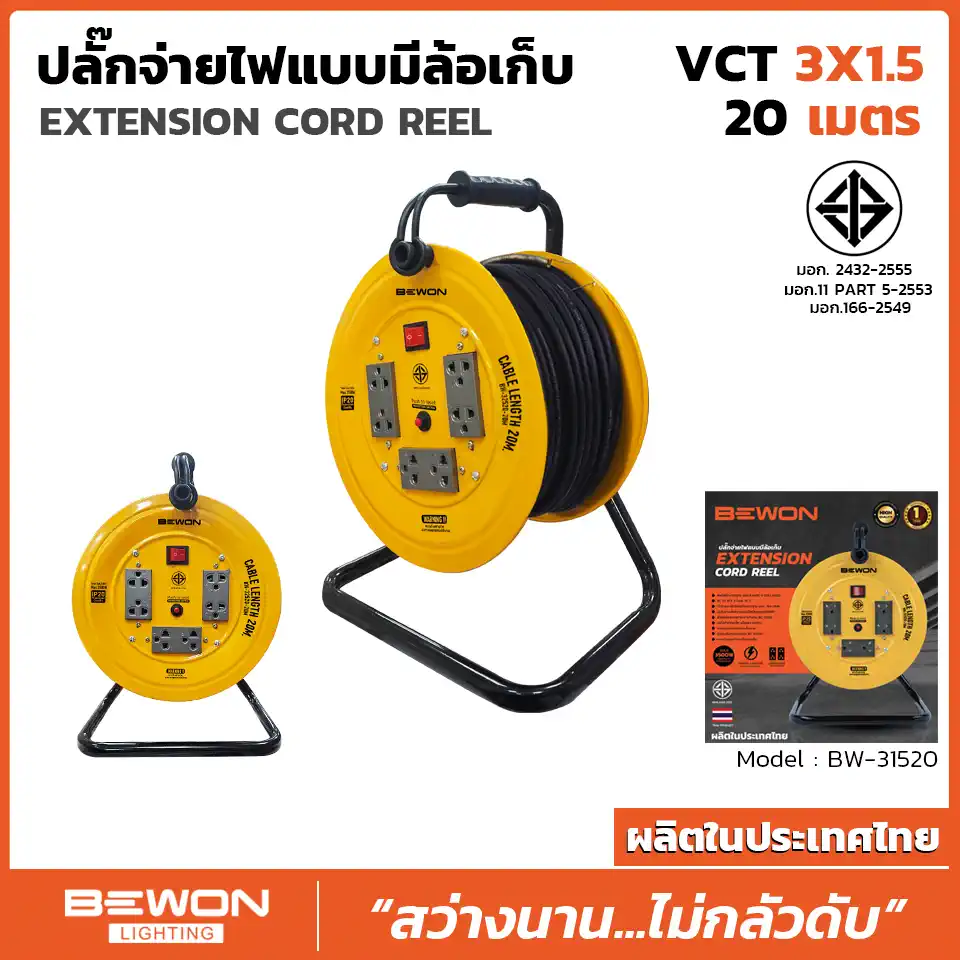

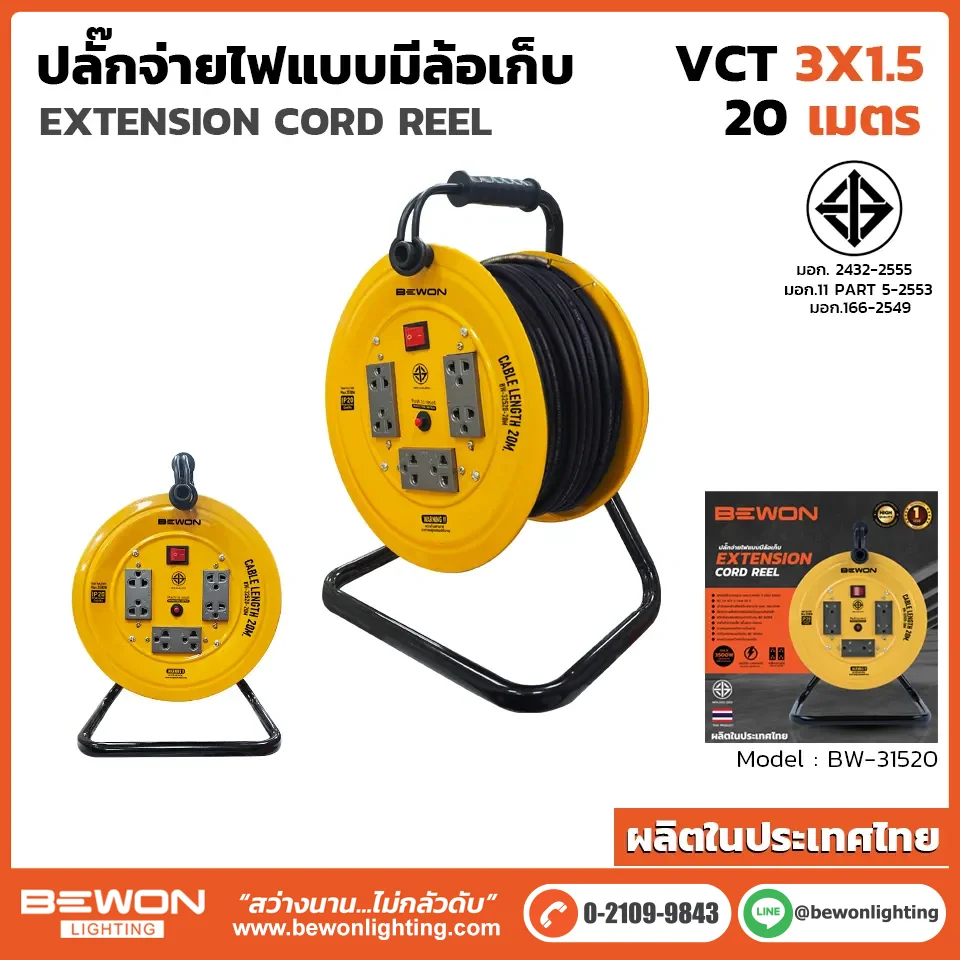

ปลั๊กสายไฟแบบมีล้อเก็บ รุ่น BW-31520

ล้อเหล็กและโครงจับมือแข็งแรง
จานเหล็กหนาเคลือบอีพ็อกซี่อย่างดี
มือจับยางเป็นฉนวนไฟฟ้า พร้อมตัวล็อคเมื่อไม่ได้ใช้งาน
มีตัวล็อคสายไฟกับจานล้อป้องกันการหมุนของล้อขณะใช้งาน
มีตัวยึดสายกับล้อ ป้องกันจุดเชื่อมต่อสวิทซ์ ON-OFF
สวิทซ์เปิดปิดและสวิทซ์รีเซ็ตแยกจากกัน เพื่อความคงทนในการใช้งาน
สายไฟ VCT 3×1.5sq.mm ความยาว 20 เมตร
สินค้าได้รับมาตรฐาน มอก.2432-2555 (ชุดปลั๊กพ่วง)
สินค้าได้รับมาตรฐาน มอก.11 เล่ม 5-2553 IEC 53(สายไฟ)
ผลิตในประเทศไทย

Strong steel wheels and handgrip frame.
Thick steel plate with good epoxy coating.
Rubber handle is electrically insulated and has a lock when not in use.
Cable lock and a wheel plate to prevent the wheel from spinning during use.
Cable holder with wheels to protect the ON-OFF switch connection point.
Separate on-off switch and reset switch for durability.
VCT cable 3×1.5sq.mm length 20 meters
TIS.2432-2553 standards (extension plug set).
TIS 11 Vol.5-2553 IEC 53 standards (electrical wire).
Made in Thailand.



คำอธิบาย

SPECIFICATION
Model BW-31520
Max Voltage 250V
Switch 30A Breaker
Outlet 6 Port
(3pcs Duplex Socket)
Material Special Alloy
Wire VCT 3 x 1.5 sq.mm, Length 20M
IP Standard
IP20
Standard • TIS 2432-2555
• TIS 11 Part 5-2553,60227 IEC 53
• IEC 61058
• IEC 60934
Product Dimension 390 x 288 x 220mm
Product Weight 2.22Kg
