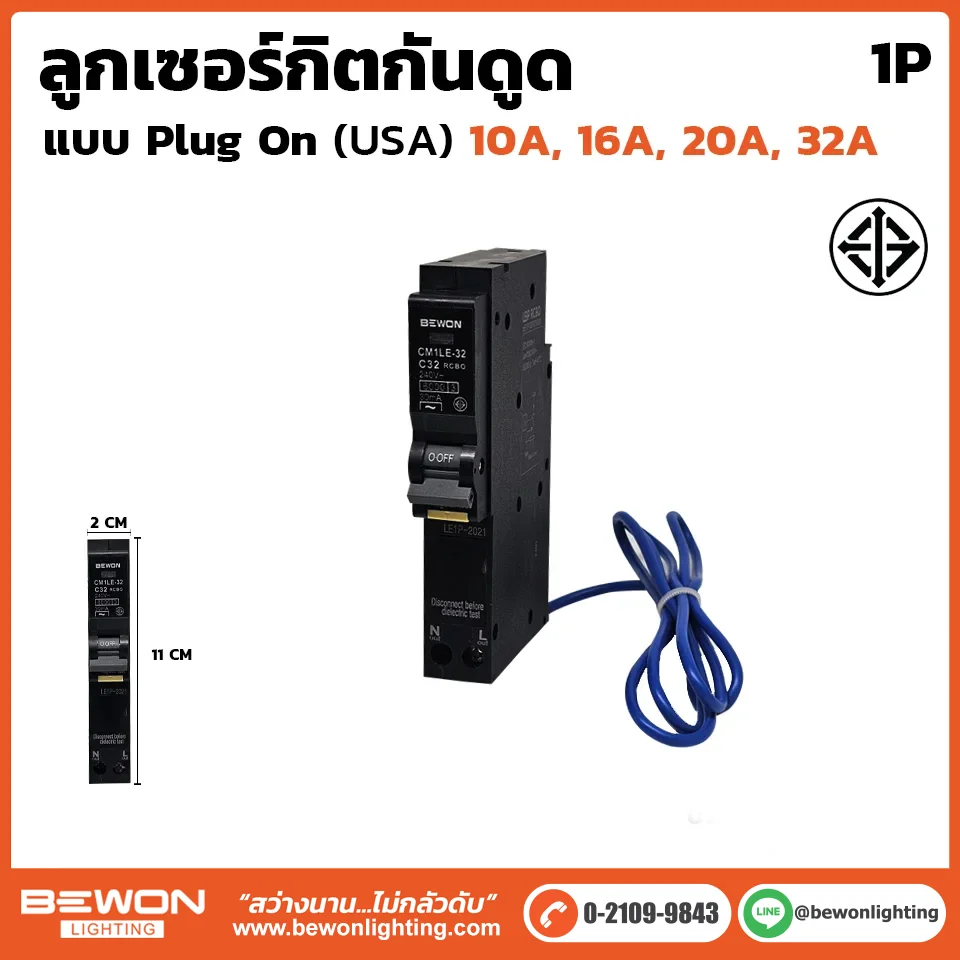

ลูกเซอร์กิตเบรกเกอร์ กันดูด (Plug On)

• ลูกเซอร์กิตแบบ Plug On
• สำหรับงานในตู้คอนซูมเมอร์ยูนิต ตู้คอนโทรล ตู้โหลดเซนเตอร์
• มีให้เลือกรุ่น 10A, 16A, 20A, 32A
• ป้องกันการใช้กระแสไฟฟ้าเกินกำหนด หรือไฟฟ้าลัดวงจร
• ผลิตจากวัสดุคุณภาพสูง ไม่ลามไฟ

• Plug On circuit breakers.
• For use in consumer unit cabinets, control cabinets, load center cabinets.
• Available 10A, 16A, 20A, 32A.
• Protects against overcurrent or short circuits.
• Made of high-quality, flame-retardant materials.



คำอธิบาย

SPECIFICATION
Voltage AC 240V 50/60 Hz
Rated Current 10A, 16A, 20A, 32A
Rated residual current (IΔn) 30mA
Interrupting Capacity (IC) 6kA
Mounting mode Plug On
Standard  TIS.909-2548
IEC61008
Dimension 19 x 83 x 73mm
Made in Thailand

Bewon
