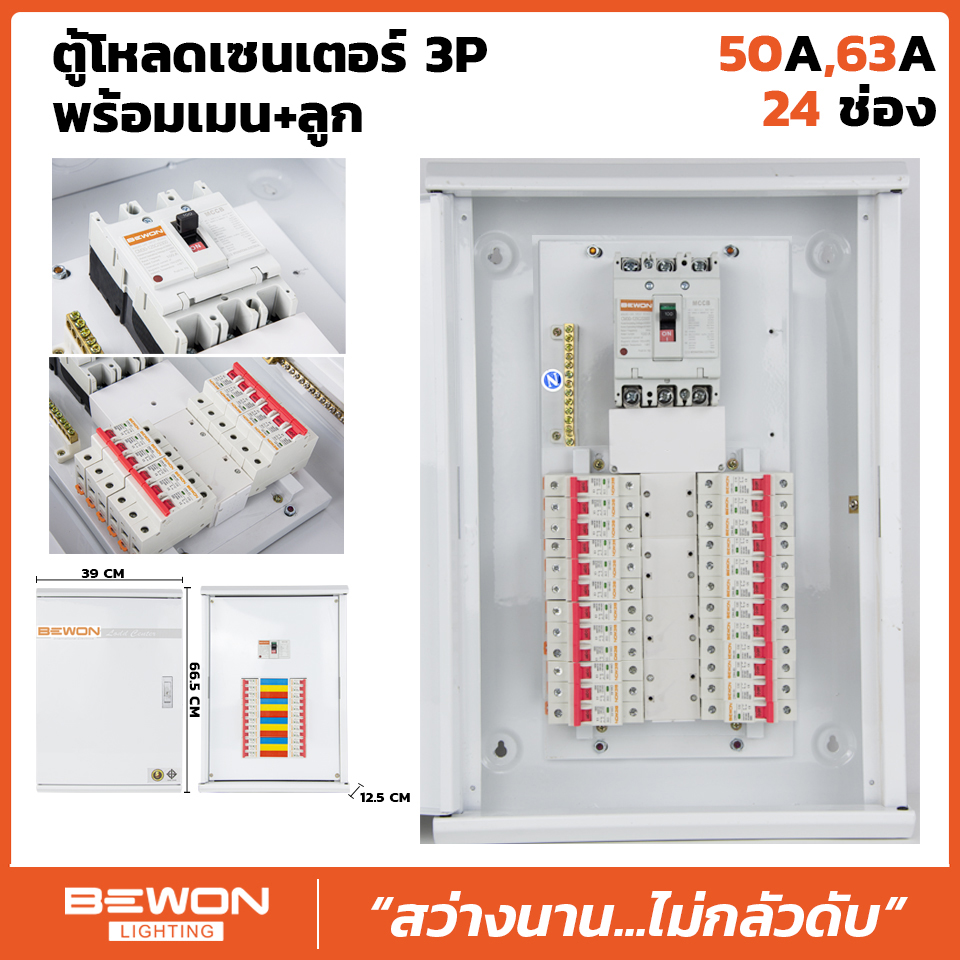

ตู้โหลดเซนเตอร์ 3P 24 ช่อง พร้อมเมน+ลูก (50A/63A)

ป้องกันไฟเกิน, ไฟลัดวงจรและกระแสไฟรั่ว
มาตรฐานการติดตั้งลูกเซอร์กิตแบบ DIN Rail เกาะราง
ตู้เหล็กแข็งแรงทนทานด้วยความหนาถึง 1.2 มิลลิเมตร
   เคลือบสีอีพ็อกซี่เพื่อป้องกันสนิมและการผุกร่อน
บัสบาร์ทองแดงและขาต่อเมนทองแดง เพื่อประสิทธิภาพในการนำไฟฟ้าสูงสุด
ควบคุมไฟฟ้า 3 เฟส 4 สาย 240/415 โวลท์
ทนพิกัดกระแสลัดวงจรได้ถึง 25KA (25,000 แอมป์)
สามารถปรับกระแสตัดรั่วได้ตั้งแต่ 30 มิลลิแอมป์ – 300 มิลลิแอมป์
พิเศษสามารถปรับค่าโอเวอร์โหลดโพรเทคชั่นได้ 0.8-1.0 IR
มีปุ่มเทสการทำงานลัดวงจร
มาตรฐาน มอก.1436 เล่ม 3-2564 และ IEC 61439
รับประกันตู้ 5 ปี และอุปกรณ์ 2 ปี
ผลิตในประเทศไทย

Protection against over current, short circuit current and leakage current.
Installation standard for DIN Rail circuit breaker
Durable steel cabinet with thickness up to 1.2 mm.
  Epoxy coated to prevent rust and corrosion.
Copper busbars and copper main connectors for maximum conductivity efficiency
Electric control 3-phase 4-wire 240/415V
Withstand short-circuit current up to 25KA (25,000A)
The leakage cut-off current can be adjusted from 30 mA – 300 mA.
Special overload protection can be adjusted 0.8-1.0 IR
Button to test the short-circuit test button
มาตรฐาน มอก.1436 เล่ม 3-2564 และ IEC 61439
5 year cabinet warranty and 2 year equipment warranty.
Made in Thailand.



รายละเอียดเพิ่มเติม

SPECIFICATION
Rated operational voltage, Ue (V) 240V / 415VAC 50/60Hz
Rated current, In (A) 50A, 63A
Number of ways
24 ways (outgoer)
Longtime overcurrent protection (IR) 0.8-1.0IR
Ui (AC) 750V
Ui mp (KV) 8KV
Ics =% x Icu 100%
IP Standard IP30
Standard TIS 1436 Part3-2564
IEC 61439
Size 390 x 125 x 560 mm.
Weight 12.50Kg
Made in Thailand
